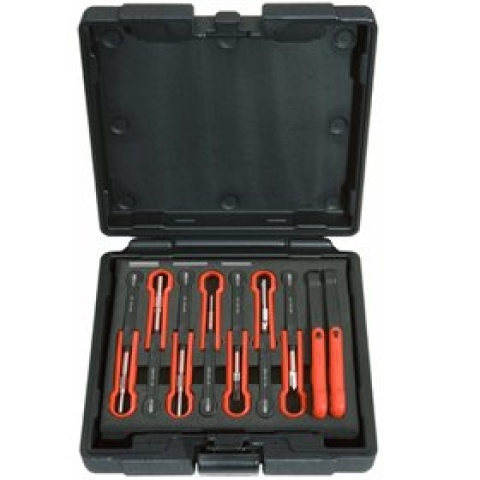

The 12-piece Electronics Lug Remover Set consists of an assortment of 9 electrical and automotive electronics tools for removing lugs from connectors and 3 spare bits. Supplied in a high density foam storage module in a plastic case.

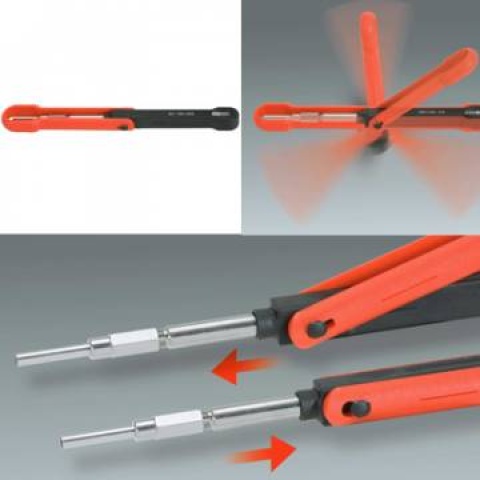

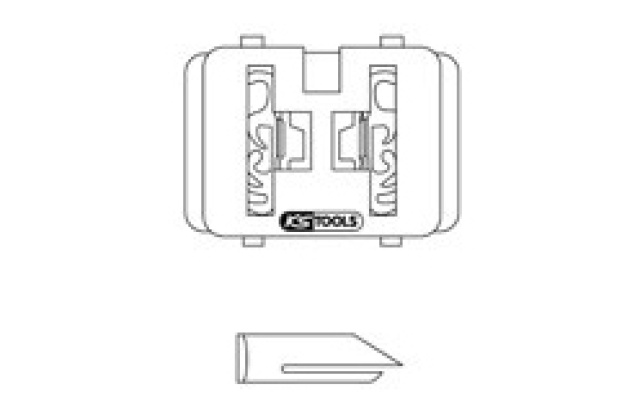

These electrical connector release tools are fitted with a rotating locking handle, which when not in use, protects the ferrules. This protection becomes an ergonomic handle when using the tool
Composition of the electrical terminal puller set:
This very complete set meets 4 principles for unlocking lugs that correspond to more than 10 different types of connectors, for the most generalist car, utility and truck brands: BMW, Daimler Chrysler, Fiat, Ford, Honda, Jaguar, Opel, Mazda, Mercedes benz, Mitsubishi, Porsche, PSA, Renault, Saab, Toyota, Volvo, VAG, Fendt, Iveco, Mack, MAN, Scania…

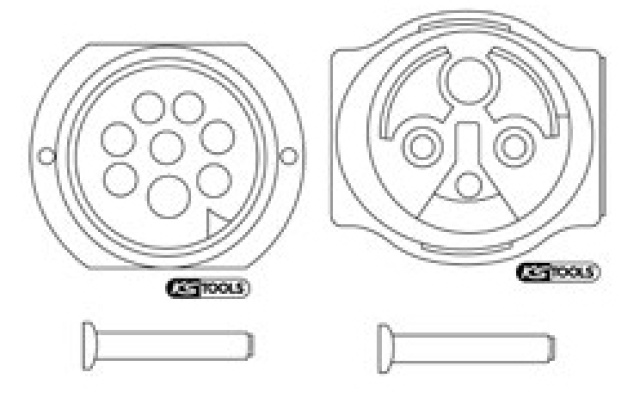

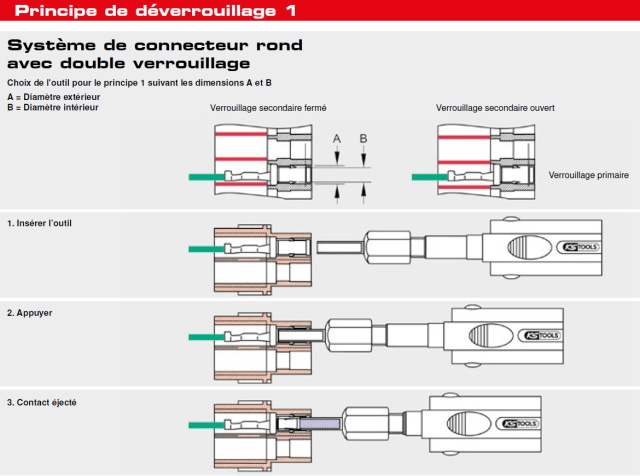

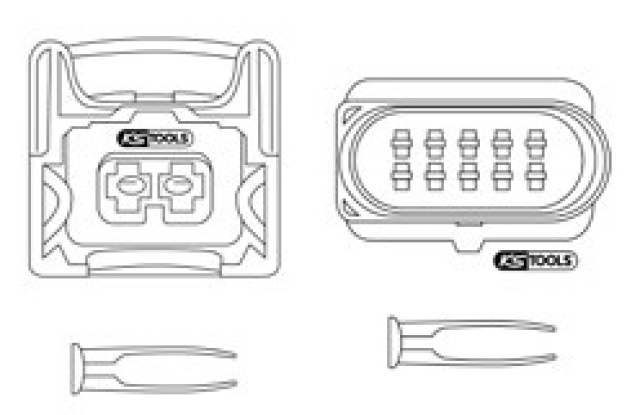

Locking principle 1 for round connector with double locking:

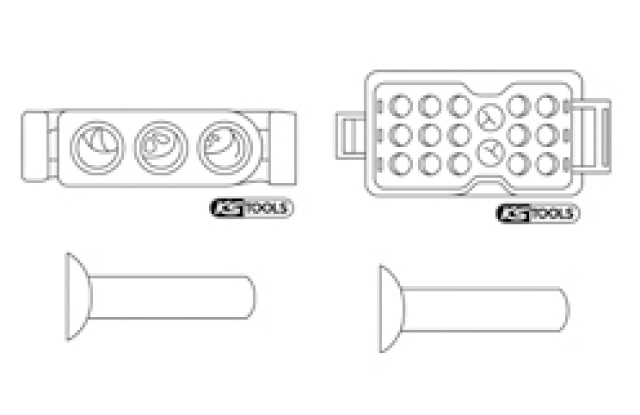

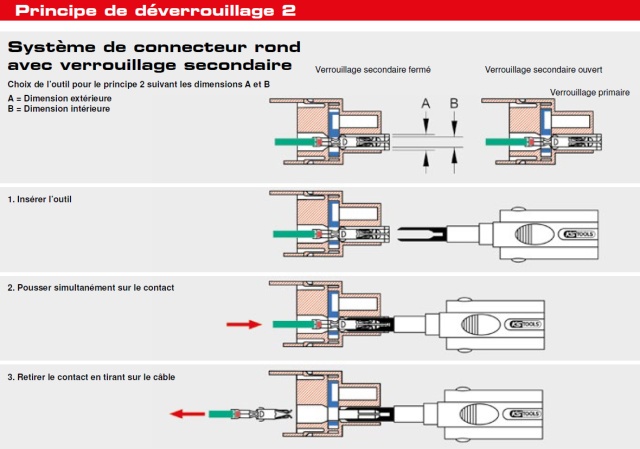

Locking principle 2 for round connector with secondary locking:

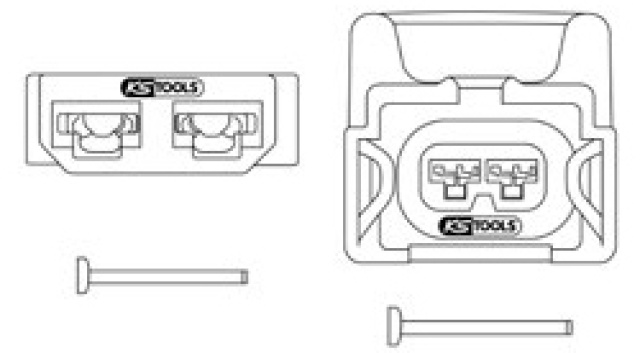

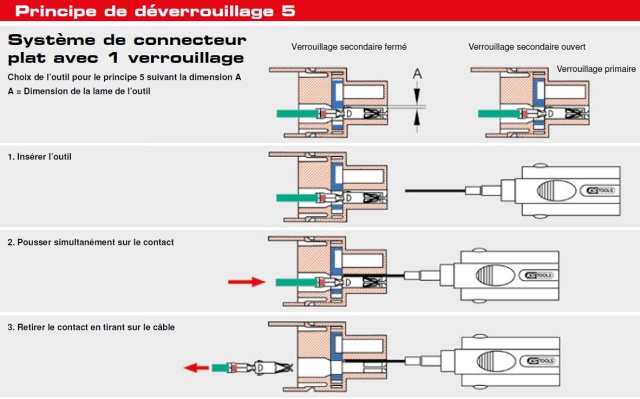

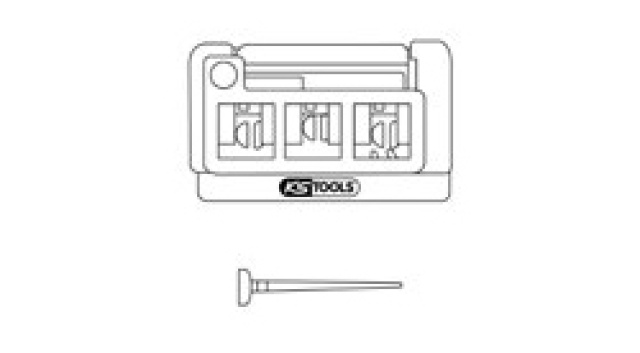

Locking principle 5 for flat connector with one lock:

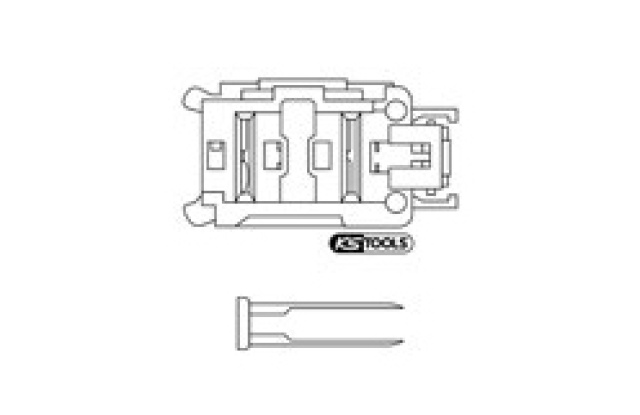

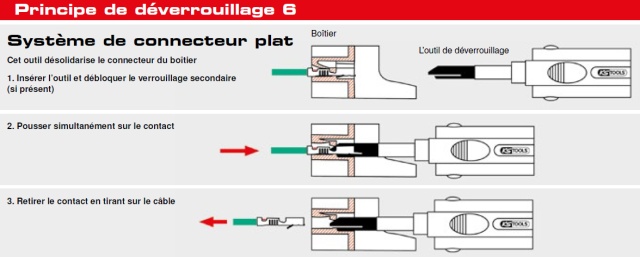

Locking principle 6 for flat connector:

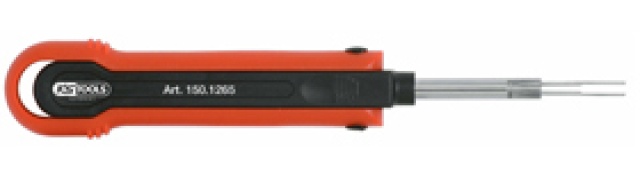

Terminal extraction tool 150.1265:
- For AMP Tyco MT II manufacturer - For connector width 1.6 mm - Extraction according to principle 2 - Blade protection cover - Steel tip Application: BMW, Mercedes, Opel, Volkswagen, Audi, Seat, Renault, etc.

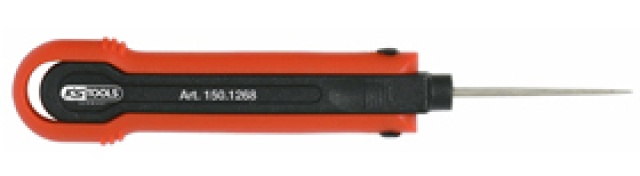

Terminal extraction tool 150.1268:
Terminal puller for Faston connectors
- For manufacturer AMP Tyco MT I - For connector width 1.6 mm - Extraction according to principle 5 - Blade protection cover - Steel tip Application: BMW, Mercedes, Ford, Opel, Volkswagen, Audi, Renault, etc.

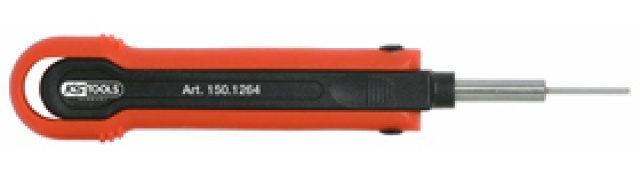

Terminal extraction tool 150.1264:
Terminal puller for flat and Faston connector
- For AMP Tyco JT, AMP Tyco ST, Deutsch DT - For connector width 2.8 mm - Extraction according to principle 5 - Blade protection cover - Steel tip Application: BMW, Mercedes, Opel, Volkswagen, Audi, Seat, Renault, etc.

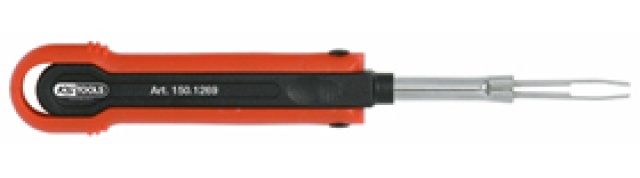

Terminal extraction tool 150.1269:
- For AMP Tyco JPT, AMP Tyco SPT, AMP Tyco, TAB, Delphi HVF2, GHW DFK, GHW MDK 3 - For connector width 2.8 mm, 4.8 mm, 5.8 mm, 6.3 mm - Extraction according to principle 2 - Blade guard - Steel tip Application: BMW, Mercedes, Opel, Volkswagen, Audi, Škoda, NKW, etc.

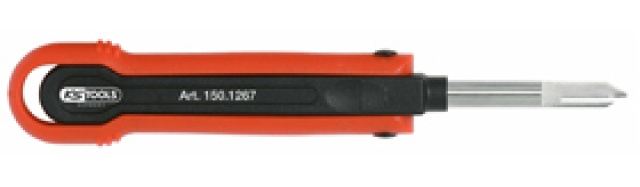

Terminal puller tool 150.1267:
- For manufacturer GHW 6.3 - For connector width 6.3 mm - Extraction according to principle 6 - Blade protection cover - Steel tip Application: Opel, Renault, etc.

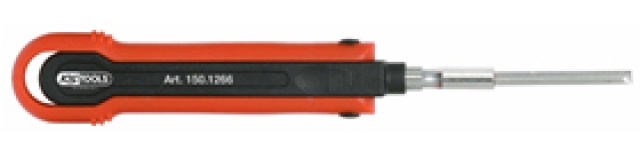

Terminal extraction tool 150.1266:
- For AMP Tyco MPT, GHW Maxi-DFK - For connector width 9.5 mm - Extraction according to principle 2 - Blade protection cover - Steel tip Application: NKW, PL

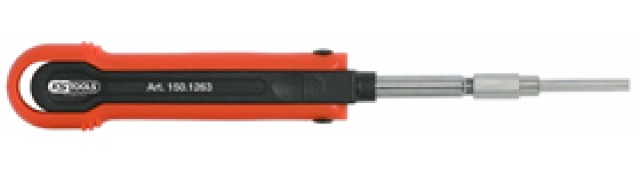

Terminal extraction tool 150.1263:
Terminal puller for round connectors
- For AMP Tyco manufacturer 1.5 - For connector diameter 1.5 mm - Extraction according to principle 1 - Blade protection cover - Steel tip and spare tip Application: BMW, Mercedes, Opel, Volkswagen, Audi, Škoda, Seat, NKW, etc.

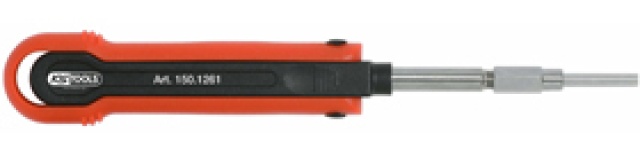

Terminal puller tool 150.1261:
Universal terminal puller for flat and round connectors - For AMP Tyco 2,3, Delphi 2,3, GHW 2,3 manufacturers - For connector diameter 2.5 mm - Extraction according to principle 1 - Blade protection cover - Steel tip and spare tip Application: Ford, Opel, Renault, etc.

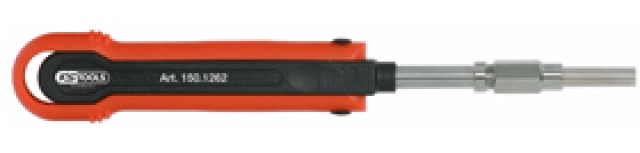

Terminal extraction tool 150.1262:
Universal terminal puller for flat and round connectors
- For AMP Tyco 3.5 manufacturer - For connector diameter 3.5 mm - Extraction according to principle 1 - Blade protection cover - Steel tip and spare tip Application: BMW, Mercedes, etc.
Find the 12-piece electric terminal extractor set on Millmatpro.com at the discounted price of 79.00 € instead of 192.40 €
