The new common rail diesel engines work at quite high pressures (often over 1500 bar). The injectors are, therefore, firmly fixed to resist these pressures. However, over time, gas leaks on the injector seat allow carbon build-up to create a base that further holds the injector in place.During extraction, the mechanic is very often confronted with three major difficulties:- The method to be used- The force required- Lack of access

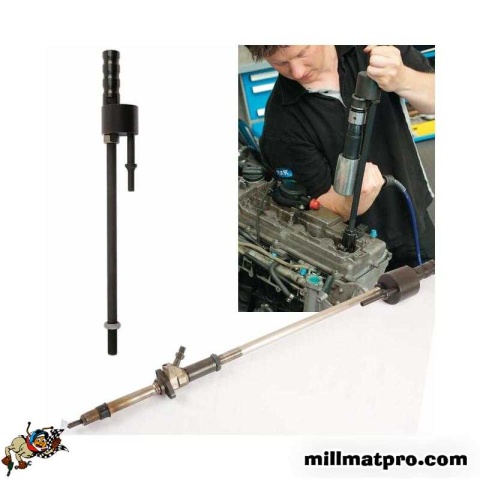

Laser Tools launches innovative diesel injector removal tool. The LAS 6092 tool uses the vibrations and impacts produced by a pneumatic hammer/burner to extract components.Fitted with a 5/8" male thread for connection to any inertia hammer adaptor with a similar internal thread.
Laser tools recommends using the Laser 6031 pneumatic hammer with the extractor.
This novelty guarantees an efficient extraction of the most difficult to remove diesel injectors.
When used in conjunction with the correct adapter, this tool can be used to remove :- Blind pins such as fifth wheel pins on semi-trailers.- Diesel injectors.- Small diameter bushes (less than 30 mm diameter).- Bodywork dents.
Adapters are sold separately
Find the diesel injector extractor tool at a price of 149.50 € including VAT
How to use the diesel injector extractor:
- All locknuts must be kept tight during use.- Ensure that gloves, safety glasses and ear protection are used during the extraction process.- Check that the handle and lock nut (C) are tight.- Install the appropriate adapter and tighten the lock nut (E).- Connect to the component to be removed and tighten.- Insert the punch (F) into the air hammer and check that it is locked.- If possible, select a low setting for the air hammer.- Insert the punch fully into the anvil.- Run the air hammer in 5 second bursts on a low setting.- Increase the level of impact and vibration as required.- As soon as the component starts to move, release the physical pressure applied upwards to prevent the component and extractor from being ejected.
For your safety:
ALWAYS HOLD THE AIR HAMMER-EXTRACTOR COMBINATION WITH BOTH HANDS.DO NOT USE ANY LOCKING DEVICE ON THE HANDLE.NEVER PULL TOWARDS THE FACE
Discover compatible injector adaptors on the diesel injector extractor, range from 24.97 euros incl. VAT:
LAS 6118 Thread M25Siemens injectors with M25 thread
——————————————————–
LAS 6119 Thread M20Denso injectors with M20 thread (Nissan, etc)
——————————————————–
LAS 6120 M27 threadSiemens injectors with M27 thread
——————————————————–
LAS 6121 M12 threadM12 internal threading suitable for older injector models with M12 high pressure connection in the top of the injector
——————————————————–
LAS 6122 Thread M14Internal for Delphi
——————————————————–
LAS 6123 Universal ThreadOff-line action with 15° angle and 30° oscillation
