Update from Laser tools: the Alfa Romeo MultiAir wedge kit.
These tools have been designed to lock the camshaft and crankshaft in position in order to remove and replace the timing belt on new generation Alfa Romeo and Fiat MultiAir 1.4 l engines.
Applications on
Alfa Romeo Mito / Giulietta Multiair 105 – Multiair Turbo 135 – 163 – 170 engine from 2009 to 2013 with engine codes 955A6.000 – 955A2.000 – 955A7.000 – 955A8.000 – 940A2.000.
Fiat Punto Evo / Punto / Bravo Multiair 105 – Multiair Turbo 135- 140, Abarth, Abarth petrol engine from 2009-2013 with engine codes 198A7.000 – 955A6.000- 955A8.000.
Lancia Delta Turbo Multiair engine from 2010-2013 with engine code 198A7.000.
Chrysler Delta 140 M air engine from 2011 to 2013 with engine code 198A7.000.

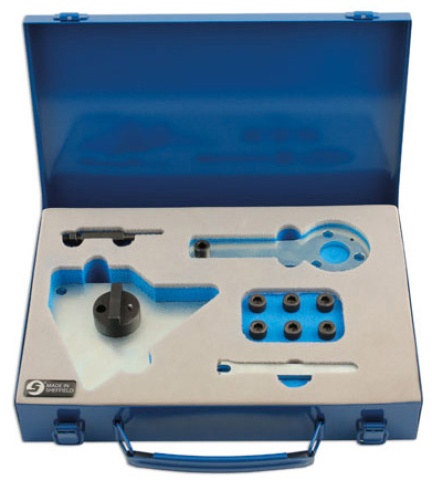

Composition of the Alfa Romeo MultiAir wedging box:
A C150 OEM N° 2 190 754 200 Crankshaft locking pin
B C491 OEM No. 2 000 004 500 Crankshaft Locking Tool
C C256 OEM No. 1 860 987 000 Tensioner tool, used to rotate the belt adjuster to tension the timing belt
D C590 OEM No. 2 000 034 400 Camshaft Locking Plate
Ford Eco boost timing kit on Millmatpro.com for €95.24 incl. VAT
